Adjustable 10W 940nm Powell Lens Uniform Line Laser for Precise Power Control Line Width 20mm 4m Operating Voltage 24V DC

Lugar de origen China
Nombre de la marca AIMLASER
Certificación FDA, IEC
Número de modelo Se trata de una serie de medidas de control.
Cantidad de orden mínima 1
Detalles de empaquetado Bolsas antistaticas, en cartón
Tiempo de entrega Entre 10 y 20 días
Condiciones de pago Términos de pago
Capacidad de la fuente 1000 piezas al mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Módulo láser de línea uniforme con lente de Powell longitud de onda 940nm
Ancho de línea 20 mm@4 m Ángulo del ventilador 120°
Voltado de funcionamiento 24 V de corriente continua Materiales del caso El aluminio negro aislante anodizado
Esperanza de vida 10000 horas
Resaltar

20mm Powell Lens Uniform Line Laser

,

10W Powell Lens Uniform Line Laser

Deja un mensaje
Descripción de producto

940nm 10W 20mm@4m 120° Powell Lens Uniform Line Laser with External Potentiometer to Adjust Power


Product Description


The AM940U10WG1M is a 940nm 10W uniform line laser module designed with a precision Powell lens to generate a sharply defined, uniform-intensity laser line with a 120° fan angle and a line width of ≤20mm at 4 meters. This makes it ideal for long-distance infrared alignment, industrial vision systems, and structured light projection.


Unlike conventional line lasers that use cylindrical lenses and generate a Gaussian intensity profile—brighter at the center and dimmer toward the edges—the Powell lens transforms a Gaussian spot beam into a line with uniform brightness across its entire length. This uniform distribution is critical for accurate illumination, precision measurement, and machine vision inspection, especially in automation or robotics environments.


This model also features an external potentiometer for easy power adjustment, allowing fine-tuning for specific applications. Its integrated thermal control system enhances internal heat dissipation, ensuring stable performance and extended lifetime under continuous operation.

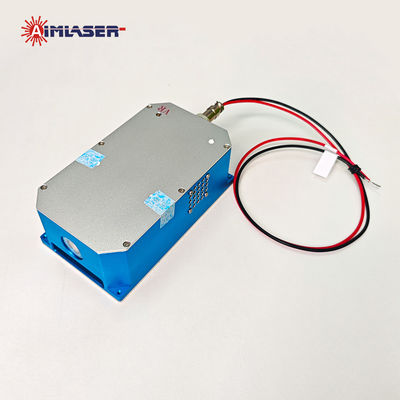

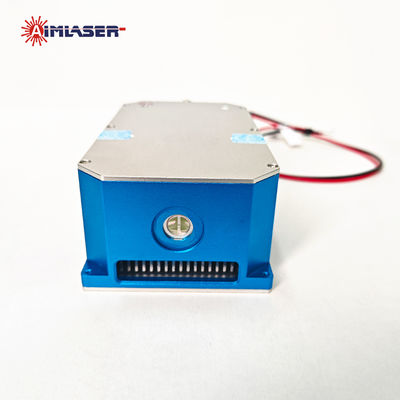

Adjustable 10W 940nm Powell Lens Uniform Line Laser for Precise Power Control Line Width 20mm 4m Operating Voltage 24V DC 0Adjustable 10W 940nm Powell Lens Uniform Line Laser for Precise Power Control Line Width 20mm 4m Operating Voltage 24V DC 1

Specifications


Model Number AM940U10WG1M Powell Lens Uniform Line Laser Module
Wavelength 940nm
Output Power 10W
Output Aperture Φ10.0mm
Line Width ≤20mm@4m
Fan Angle 120°
Divergence 0.5mrad
Optics Optical Glass Powell Lens
Operating Current <250mA
Operating Voltage 24V DC
CDRH Class Class IIIb
Circuit control Auto Constanct Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions 14x8x5.2cm
Case Material Aluminum Black Anodized (Insulation)
Life Span 10,000Hrs


Features


  • Powell lens for uniform-intensity laser line
  • 940nm infrared, high power up to 10W
  • ≤20mm line width @ 4m, 120° fan angle
  • External potentiometer for power adjustment
  • Integrated thermal control for stable performance
  • Robust anodized aluminum housing
  • ACC drive with surge and polarity protection


Applications


The Powell lens uniform distribution line laser diode modules are used in:


  • Robotic vision and intelligent automation

  • Structured light scanning and 3D profiling

  • Automated optical inspection (AOI)

  • Surface defect detection

  • Precision alignment and industrial metrology
