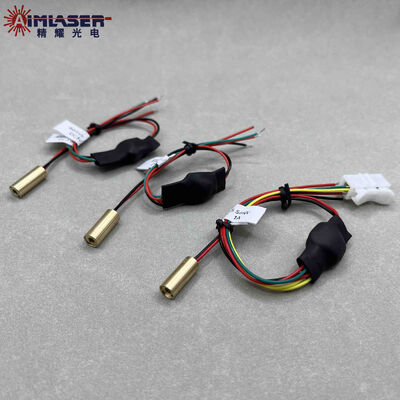

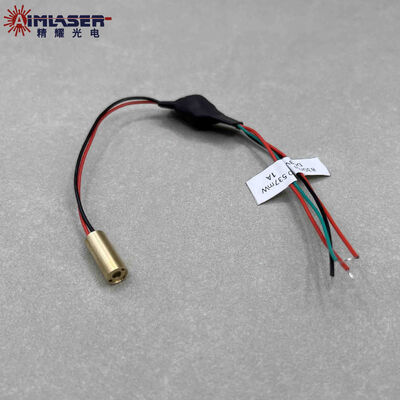

850nm Infrared Laser Diode Module Dual Power 5mW / 50mW Switchable Φ6×12mm Compact Size for Laser Sighting and Night Vision
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | AIMLASER |
| Certificación | FDA, IEC |
| Número de modelo | Se aplicará el procedimiento siguiente: |
| Cantidad de orden mínima | 1 |
| Detalles de empaquetado | Bolsas antistaticas, en cartón |
| Tiempo de entrega | 5-15 días |
| Condiciones de pago | T/T, Unión Occidental, PayPal |
| Capacidad de la fuente | 10000 unidades/mes |
Datos del producto
| Nombre del producto | Mini módulo láser conmutable de doble potencia de 850 nm | Longitud de onda | 850±5nm |
|---|---|---|---|
| Potencia de salida | 5,0 mW/50,0 mW conmutable | Tipo de láser | CW |
| Tamaño del haz | 10x22mm@25m | Divergencia | 0,5(±0,3)mrad |
| Esperanza de vida | ≥8.000 horas | Material | Casas de latón, lentes de vidrio óptico |
| Dimensiones | Disminución | Garantía | 1 año de garantía |
| Resaltar | 850nm infrared laser diode module,dual power laser module 5mW 50mW,compact laser module for night vision |
||
Descripción de producto
850nm 5mW/50mW IR Laser Module
AIMLASER 850nm infrared laser diode module is a compact, high-stability IR laser source designed for precision aiming, laser sighting, night vision systems, rangefinding, and industrial alignment applications. It features a dual power switchable output of 5mW and 50mW, providing flexible performance for different system requirements.
The module delivers a highly collimated infrared beam with low divergence of 0.5 ±0.3 mrad, ensuring accurate long-distance targeting and stable optical performance. Built with an Auto Constant Current (ACC) control circuit, it maintains consistent output power and reduces fluctuations during operation.
With a compact Φ6×12mm brass housing, the module is engineered for easy integration into space-limited devices while maintaining high mechanical durability. It offers a service life of over 8,000 hours and stable performance under demanding operating conditions.
This infrared laser module is widely used in tactical laser sighting systems, night vision devices, optical targeting systems, laser rangefinders, positioning instruments, and industrial sensing and alignment equipment, making it a reliable solution for professional and OEM applications.
Features
● Dual power switchable output (5mW / 50mW) for flexible system integration.
● Stable collimated beam with 0.5 ±0.3 mrad low divergence.
● Integrated Auto Constant Current (ACC) circuit ensures stable output performance.
● Shock-resistant design for improved durability in demanding environments.
● Long service life exceeding 8,000 hours for reliable operation.
● Compact Φ6×12mm brass housing for easy OEM integration.
● Complies with RoHS, FDA, and IEC standards for safety and quality assurance.
Specifications
|
ITEMS |
PARAMETERS |
|
Model Number |
Mini Infrared Laser Diode Module |
|
Wavelength |
850±5nm |
|
Output Power |
5.0mW/50.0mW Switchable |
|
Laser Drive Mode |
CW |
|
Beam Size |
10x22mm@25m |
|
Divergence |
0.5(±0.3)mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<150mA |
|
Operating Voltage |
3V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-20℃ to 80℃ |
|
Dimensions |
Φ6x12mm, Φ7x15mm, Φ8x22mm, |
|
Housing Material |
Brass |
|
Life Span |
≥8,000Hrs |
Applications
● Tactical laser sighting systems and aiming devices
● Night vision and infrared targeting systems
● Laser rangefinders and distance measuring instruments
● Optical alignment and positioning systems
● Industrial inspection and sensing equipment
● Surveying and measurement instruments
● Precision laser marking and calibration tools
● OEM laser integration for compact optical systems
Package
The modules are packaged in anti-static bags and cartons to ensure excellent protection during storage and transportation.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China.
Our Services
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
